[Lifetime Warranty] SP1419C Pool Spa Directional Flow Hydrostream Return

SP1419C Pool Spa Directional Flow Hydrostream Return

Key Features

• Allows for precise, adjustable control over water flow direction and velocity

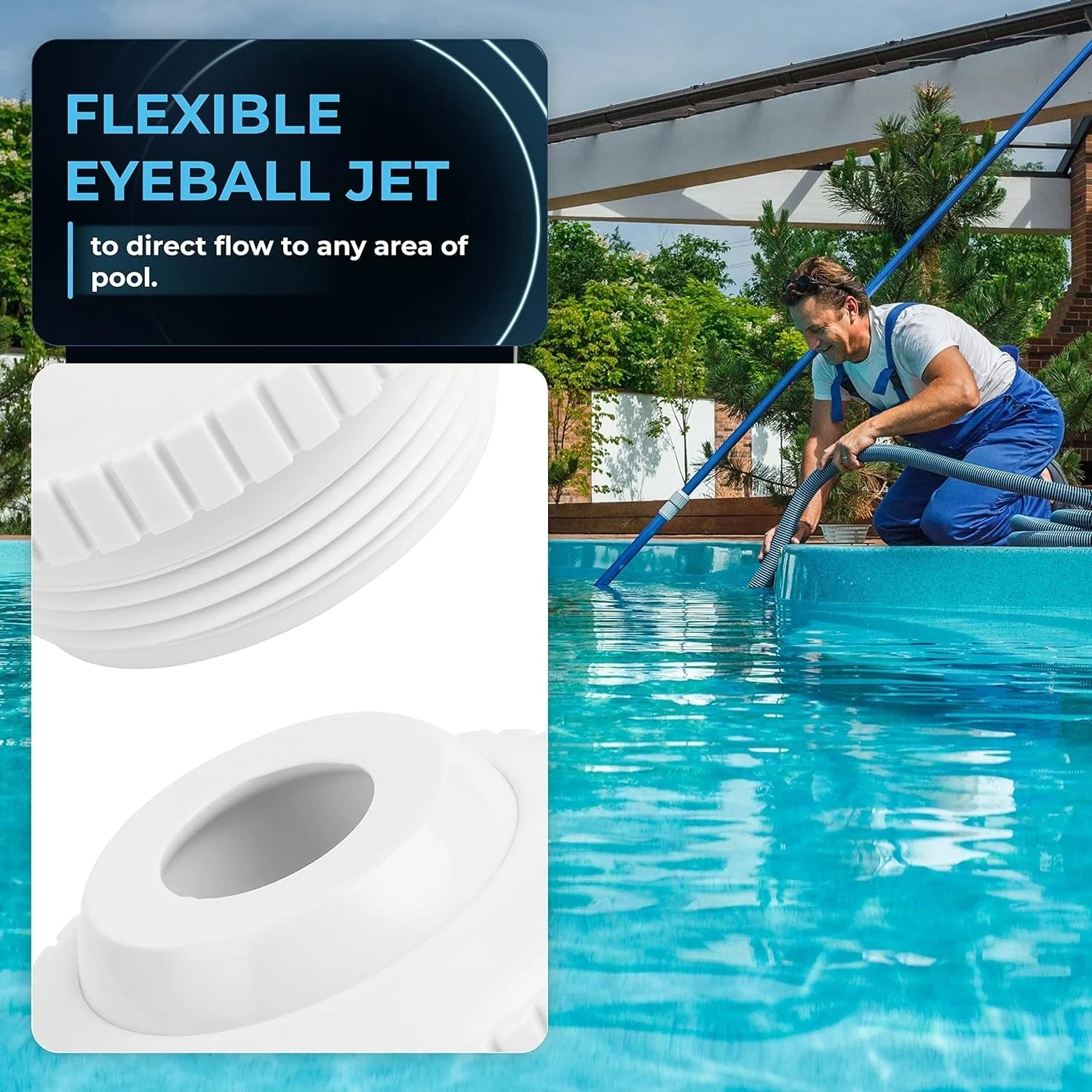

• Features a 1/2 inch eyeball opening for concentrated water stream

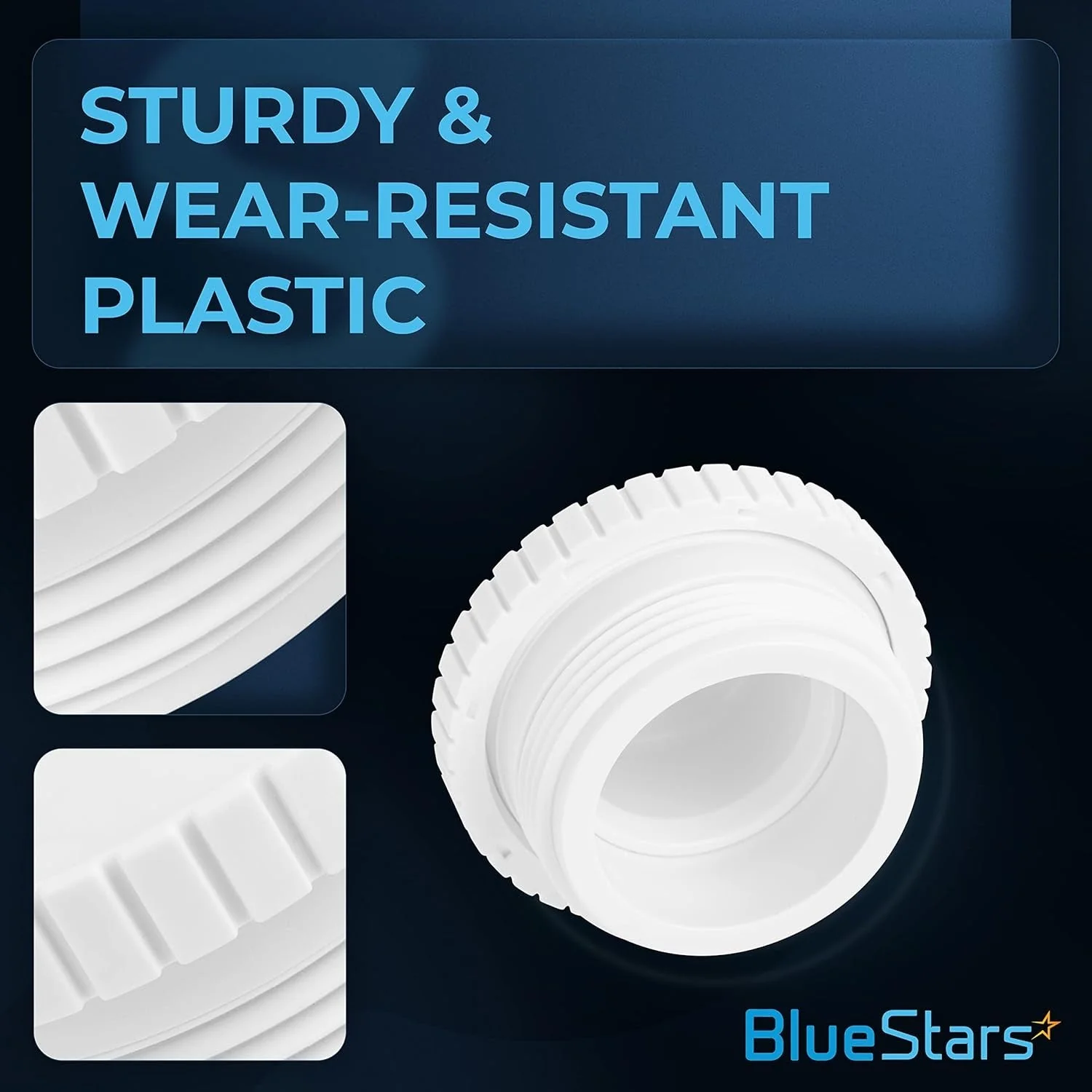

• Constructed from durable, corrosion-resistant white plastic
• Threads directly into standard pool and spa wall returns

Replaces / Cross-Reference Part Numbers

• Hayward SP1419C

Compatibility & Fitment

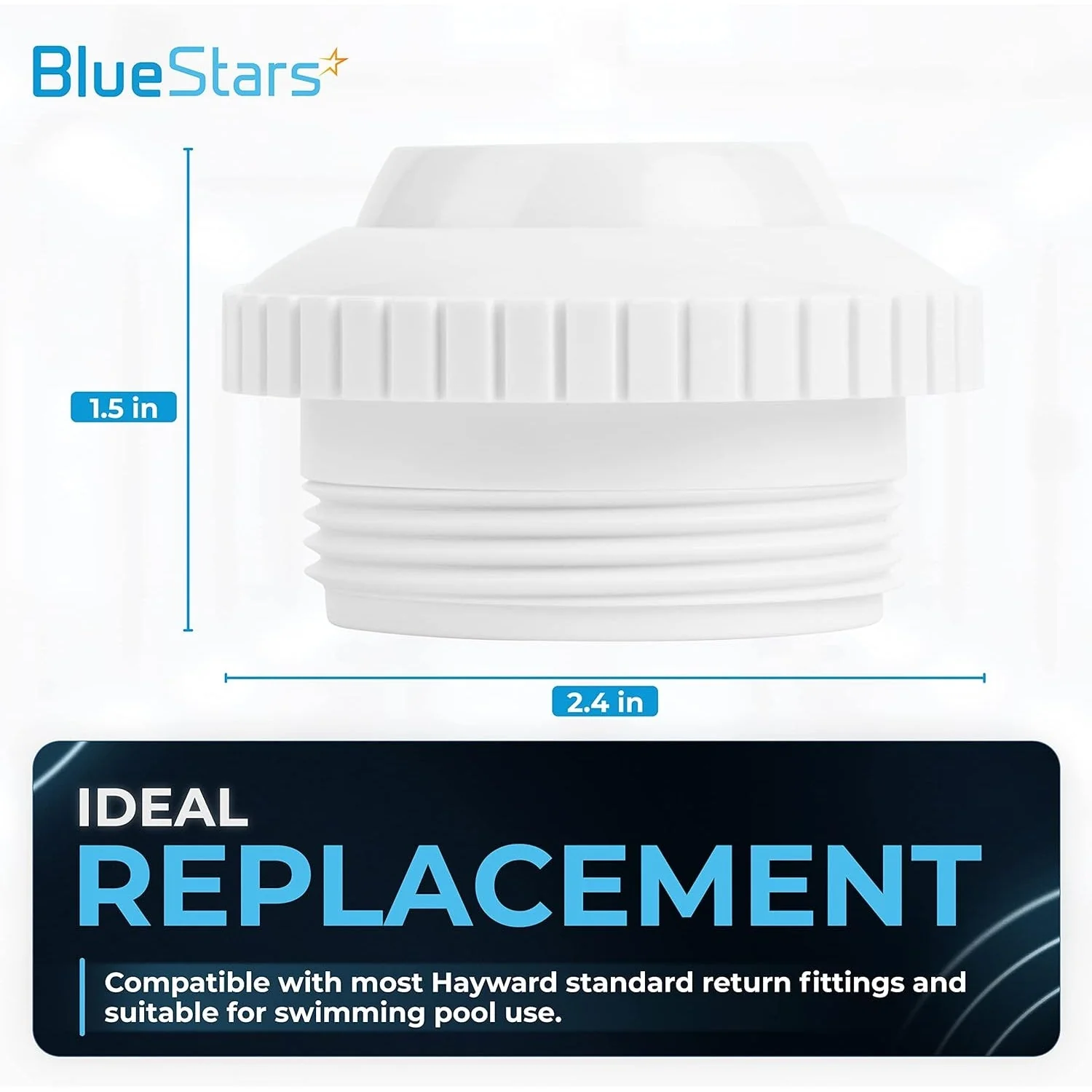

• Fits standard 1-1/2 inch Male Inlet Pipe (MIP) threaded wall fittings
• Suitable for in-ground and above-ground pools and spas

When to Replace

• Visible cracks, discoloration, or brittleness from chemical or UV exposure
• Inability to adjust or maintain the desired flow direction
• Leaking from the fitting threads or housing
• Original part is missing or damaged

Installation Tips

• Ensure the pool pump is turned off before starting installation
• Remove the old fitting by unscrewing it from the wall return
• Apply a suitable thread sealant or tape to the new fitting's threads to prevent leaks
• Screw the new fitting into the wall return by hand until snug; avoid overtightening
• Adjust the internal eyeball to direct water flow as needed
