[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4
HomeStore

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4

3392519 Dryer Thermal Fuse - Pack of 4

Key Features

  • Package contains four thermal fuses.
  • Non-resettable safety component.
  • Rated for 196°F (91°C).

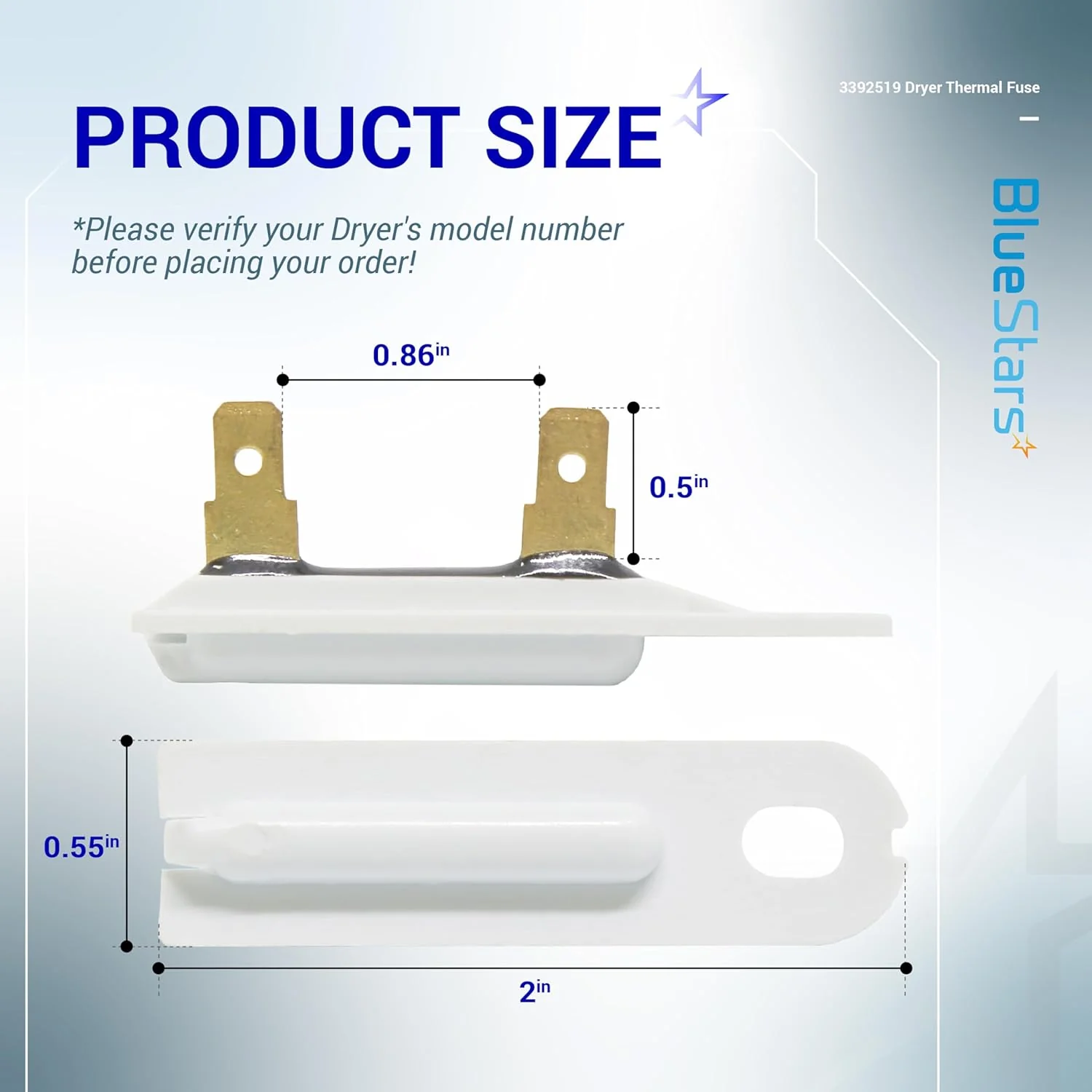

  • Features two 3/16-inch male terminals.
  • Prevents overheating by interrupting power to the heating element or motor circuit.

Replaces / Cross-Reference Part Numbers

  • 3392519
  • WP3392519
  • WP3392519VP
  • 3388651
  • 694511
  • 80005
  • ET401
  • PS11741460
  • AP6008325

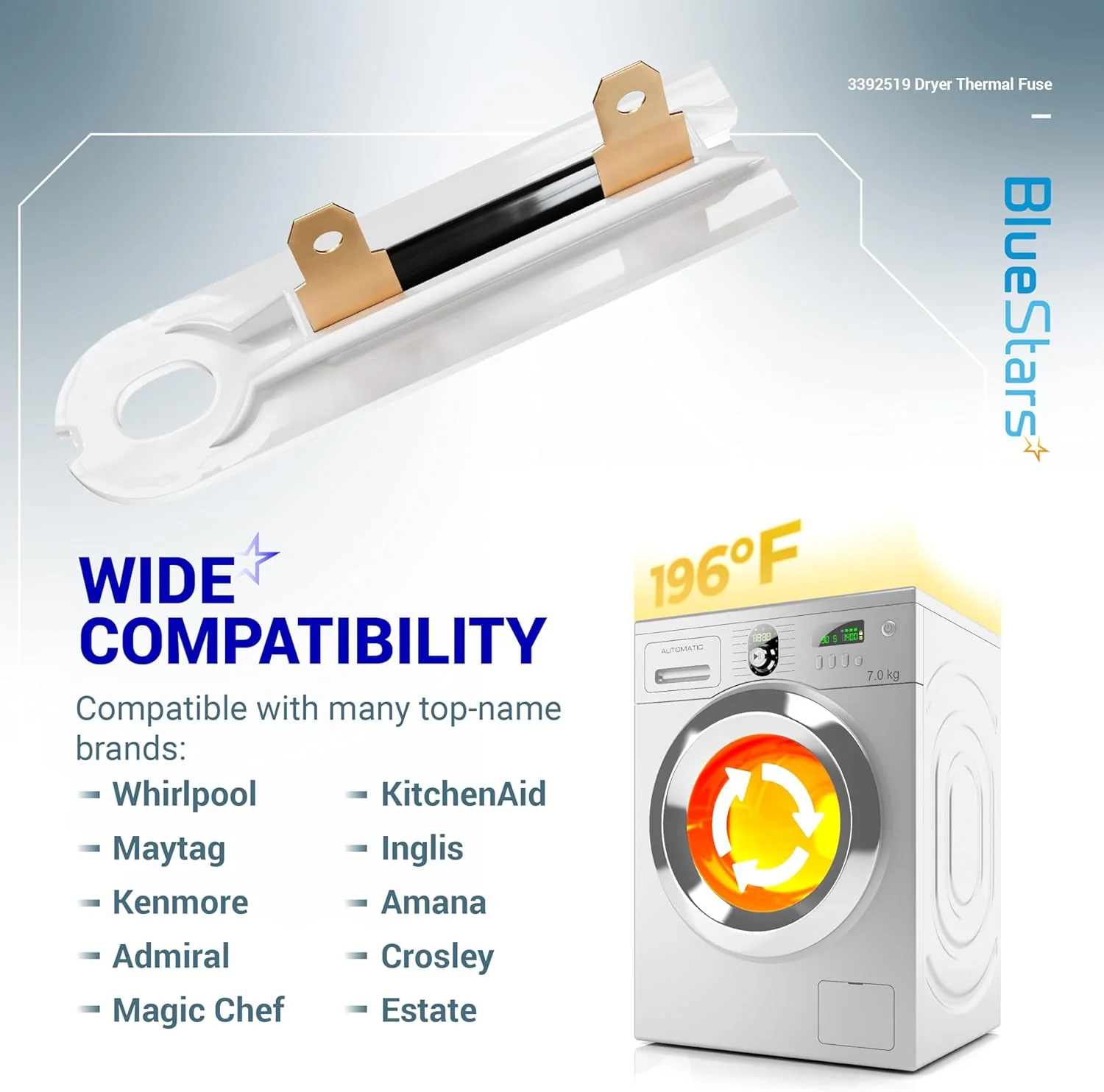

Compatibility & Fitment

  • Designed for use in various electric and gas clothes dryers.
  • Compatible with models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, and Estate.

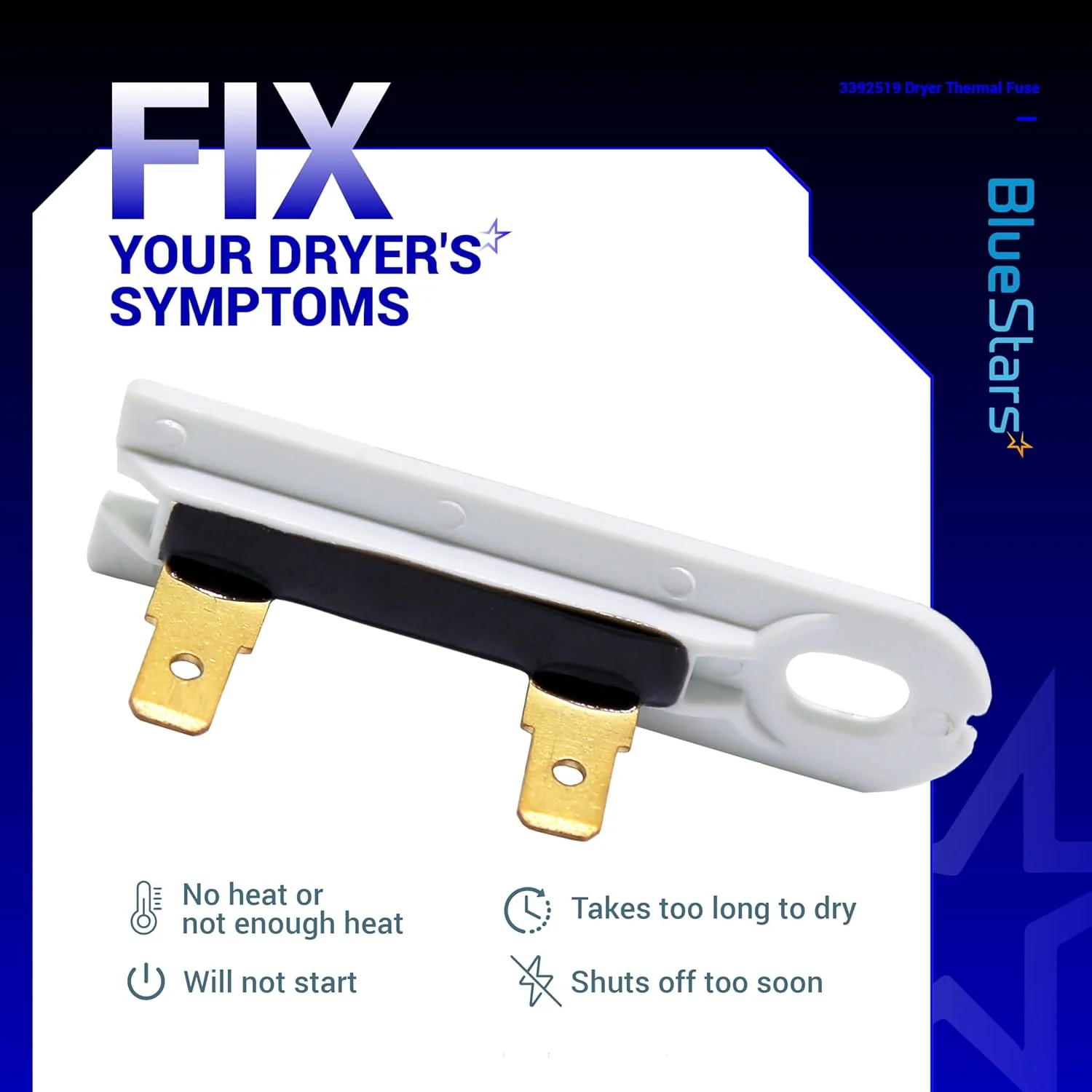

When to Replace

  • Dryer will not start.
  • Dryer tumbles but does not produce heat.
  • The existing fuse fails a continuity test with a multimeter.

Installation Tips

  • Disconnect the dryer from its power supply before servicing.
  • A blown fuse is often a symptom of restricted airflow. Thoroughly inspect and clean the dryer's venting from the lint trap to the exterior vent cap before installing a new fuse.
  • Confirm the old fuse is faulty by testing for continuity. A reading of infinity or OL (Open Line) indicates a blown fuse.
  • Typically located on the blower wheel housing or the heating element housing.
$4.90

Original: $14.01

-65%
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4—

$14.01

$4.90

More Images

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 2
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 3
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 4
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 5
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 6
[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4 - Image 7

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 4

3392519 Dryer Thermal Fuse - Pack of 4

Key Features

  • Package contains four thermal fuses.
  • Non-resettable safety component.
  • Rated for 196°F (91°C).
  • Features two 3/16-inch male terminals.
  • Prevents overheating by interrupting power to the heating element or motor circuit.

Replaces / Cross-Reference Part Numbers

  • 3392519
  • WP3392519
  • WP3392519VP
  • 3388651
  • 694511
  • 80005
  • ET401
  • PS11741460
  • AP6008325

Compatibility & Fitment

  • Designed for use in various electric and gas clothes dryers.
  • Compatible with models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, and Estate.

When to Replace

  • Dryer will not start.
  • Dryer tumbles but does not produce heat.
  • The existing fuse fails a continuity test with a multimeter.

Installation Tips

  • Disconnect the dryer from its power supply before servicing.
  • A blown fuse is often a symptom of restricted airflow. Thoroughly inspect and clean the dryer's venting from the lint trap to the exterior vent cap before installing a new fuse.
  • Confirm the old fuse is faulty by testing for continuity. A reading of infinity or OL (Open Line) indicates a blown fuse.
  • Typically located on the blower wheel housing or the heating element housing.

Product Information

Shipping & Returns

Description

3392519 Dryer Thermal Fuse - Pack of 4

Key Features

  • Package contains four thermal fuses.
  • Non-resettable safety component.
  • Rated for 196°F (91°C).
  • Features two 3/16-inch male terminals.
  • Prevents overheating by interrupting power to the heating element or motor circuit.

Replaces / Cross-Reference Part Numbers

  • 3392519
  • WP3392519
  • WP3392519VP
  • 3388651
  • 694511
  • 80005
  • ET401
  • PS11741460
  • AP6008325

Compatibility & Fitment

  • Designed for use in various electric and gas clothes dryers.
  • Compatible with models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, and Estate.

When to Replace

  • Dryer will not start.
  • Dryer tumbles but does not produce heat.
  • The existing fuse fails a continuity test with a multimeter.

Installation Tips

  • Disconnect the dryer from its power supply before servicing.
  • A blown fuse is often a symptom of restricted airflow. Thoroughly inspect and clean the dryer's venting from the lint trap to the exterior vent cap before installing a new fuse.
  • Confirm the old fuse is faulty by testing for continuity. A reading of infinity or OL (Open Line) indicates a blown fuse.
  • Typically located on the blower wheel housing or the heating element housing.
