[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650

285811 Medium Cam Agitator Repair Kit

Key Features

• Complete repair kit for washing machine agitators

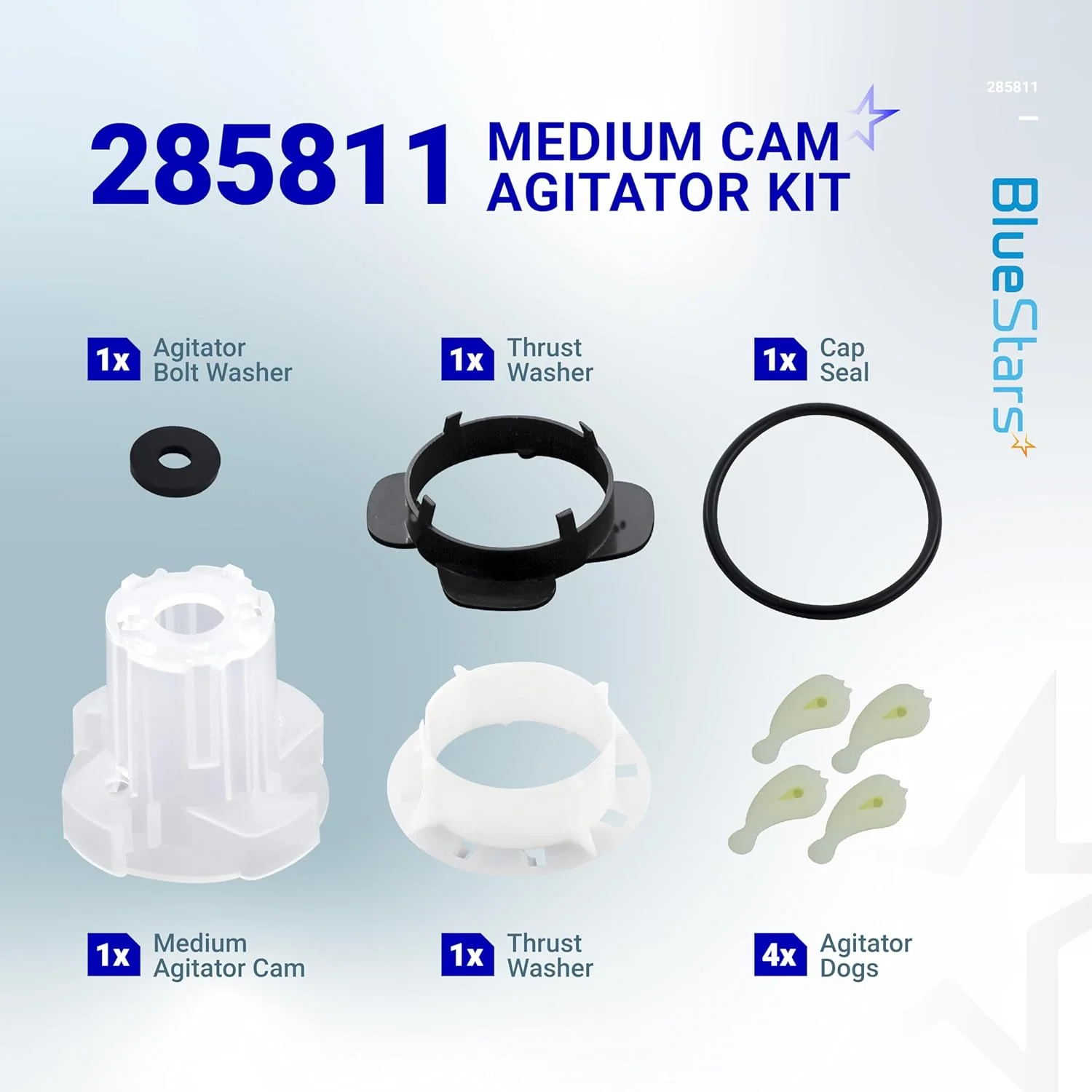

• Includes: 1 medium cam, 4 directional dogs, 1 bearing, and 1 retainer
• Material: Plastic / Rubber
• Restores dual-action agitator function

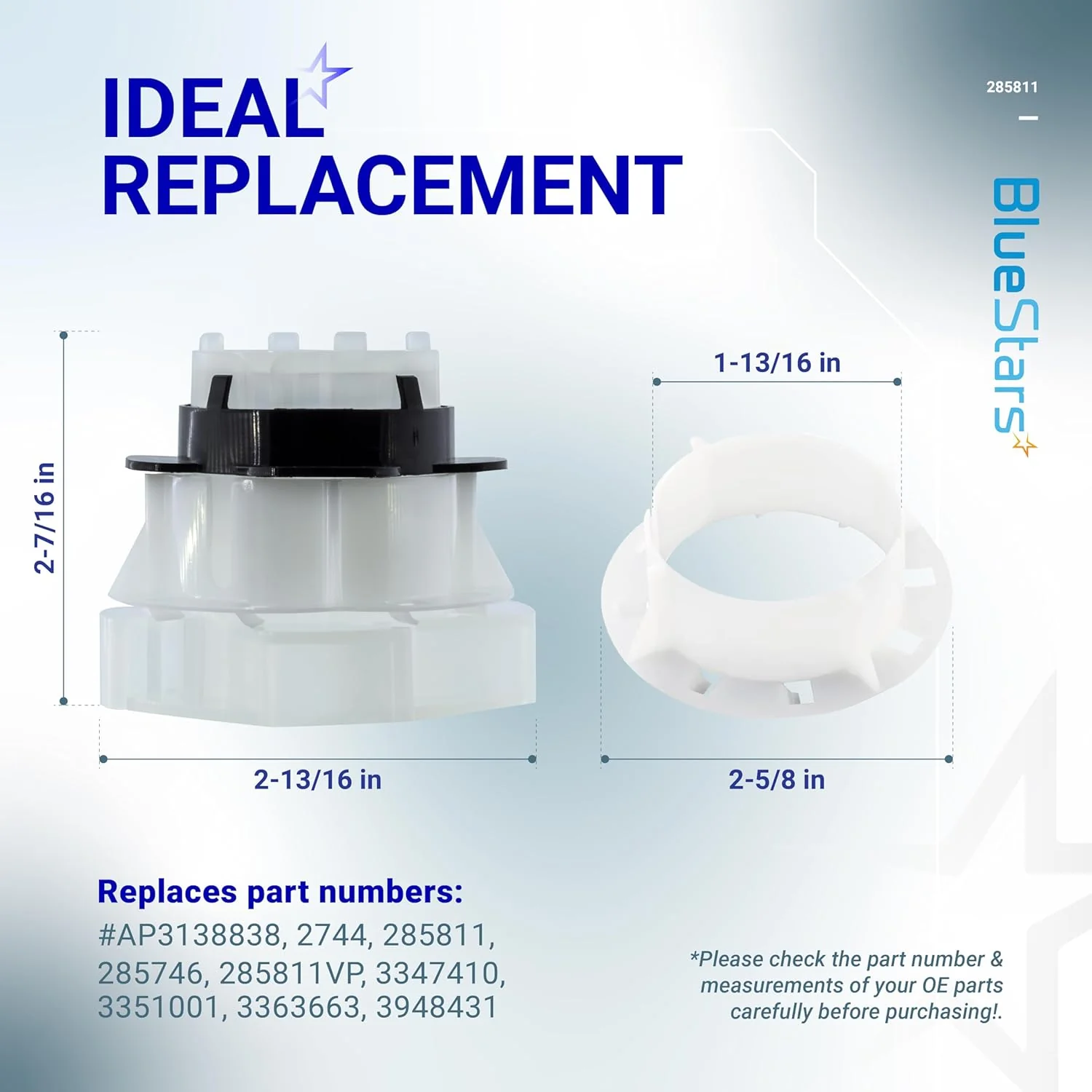

• Cam Dimensions: 2.81 in L x 2.81 in W x 2.44 in H

Replaces / Cross-Reference Part Numbers

• 285811
• 3362002
• 3951311
• 80040
• AP3094537
• PS334650
• TJ90LP227

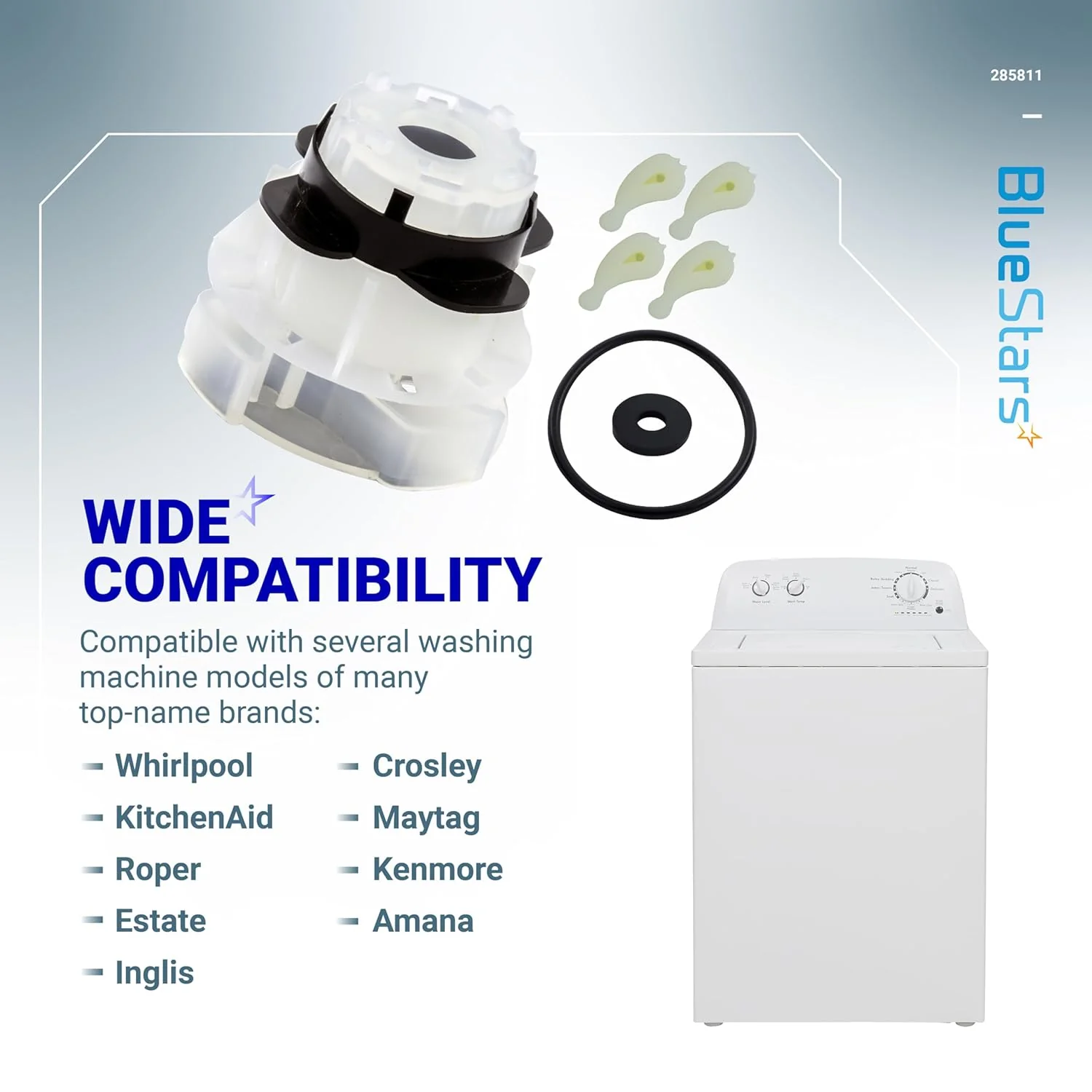

Compatibility & Fitment

• Fits most direct-drive top-load washing machines
• Compatible with major brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Inglis

When to Replace

• The top portion of the agitator does not move or moves intermittently
• Washer makes a grinding or clicking noise during the agitate cycle
• Clothes are not being agitated or cleaned effectively
• The agitator base moves but the upper section is stationary

Installation Tips

• Disconnect the washer from power and water supplies before beginning installation
• Required tool: Extended 7/16-inch socket and ratchet
• Remove the agitator cap or fabric softener dispenser to access the center bolt
• Lift the agitator assembly out of the tub to access and replace the internal components
